Application:
- Package fragile products. They are well integrated with weighing and metering systems for fragile products such as potatoes, fruits, baked goods, biscuits, pastries and other general fragile products.
- Packing heavy products. The inclined packing process can effectively reduce the impact of packing items on the bag, which is usually used to pack live fish, frozen poultry, seafood and heavy hardware.

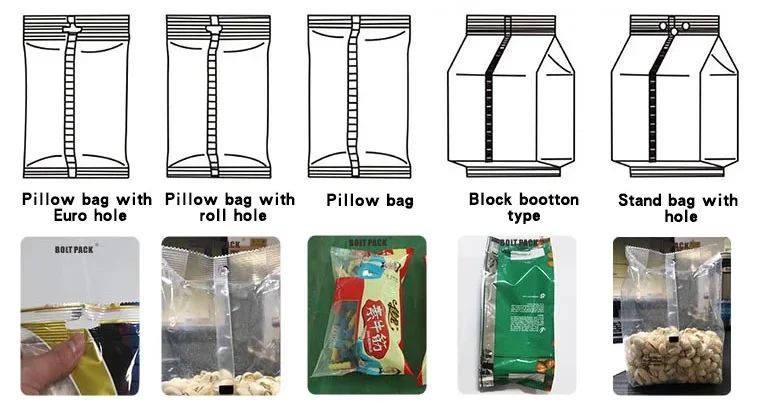

Packaging Samples:
![Inclined Form Fill Seal Machine Packing Production Line JT520S Multihead Weigher Packaging Machine 1 Packing Machine Supplier](https://www.flexpackmachines.com/wp-content/uploads/2024/06/Inclined-Form-Fill-Seal-Machine-Packing-Production-Line-samples.jpg)
Technical Parameters:
Type | QUA-520S |
Bag length | 80-370mm(L) |
Bag width | 60-250mm(W) |
Max width of roll film | 520mm |
Packing speed | 30-50bags/min |
Air consumption | 0.65mpa |
Gas consumption | 0.4m³/min |
Power voltage | 220VAC/60HZ |
Power | 3KW |
Dimension | (L)1500mm*(W)1170mm*(H)1500mm |
Deadweight of machine | 800Kg |
Technology Charateristic:
- Full-automatic weigh-form-fill-seal type, efficient and simple to use.
- Use famous brand electric and pneumatic components, stable and long life circle.
- Use superior mechanical components, reduce the wear out loss.
- Easy to install film, auto correcting the excursion of the film.
- Apply advanced operating system, easy to use and reprogramable.
- The heat transfer printer & automatic film correction motor and anti-static device are for optional.
- Stainless steel frame.
- Servo driven film pulling system.
- Photo sensor for automatic tracking eye marks.
- Hot printer and film feeding system synchronous working together.
