Technical parameters:

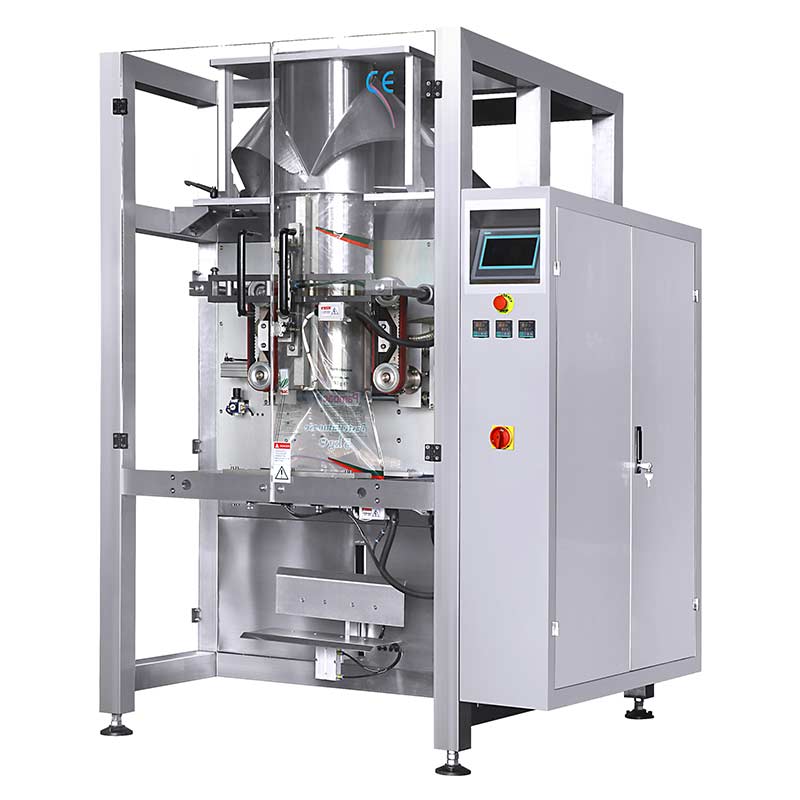

Type | QUA-920 |
Bag length | 100-570mm(L) |
Bag width | 180-450mm(W) |
Max roll film width | 920mm |
Packing speed | 5-40 bag/min |
Air consumption | 0.5m3/min 1.0Mpa |
Power voltage | 6KW 220V 50/60HZ |
Dimension | (L)1750×(W) 1510×(H) 2100 mm |
Net weight | 1000KG |
Technology Charateristic:
1. Famous Brand PLC.
2. Double servo motors for pulling film down system.
3. Automatically film recitifying function.
4. Adopt clip or supporting without broken bags ; reduce waste.
5. Many kinds of languages can be choosed.
