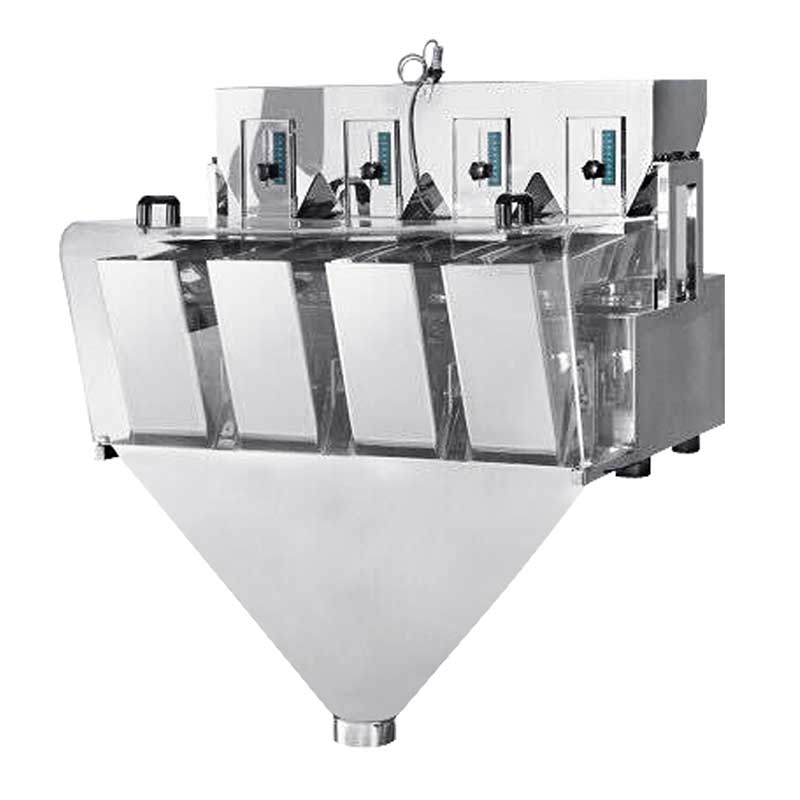

QUA-4 Four Heads Weigher

QUA 4 Four Heads Weigher


It is suitable for granule, like rice, sugar, salt, coffee bean etc.

Technical parameters:

Single Dump Max. (g)20-1500G
Weighing Accuracy(g)0.2-2g
Max. Weighing Speed10-45wpm
Weigh Hopper Volume3000ml
Control Panel5.7” LCD Touch Screen (WEINVIEW)
Max. mix-products4
Power Requirement220V/50/60HZ  8A/800W
Packing Dimension(mm)996(L)*1032(W)1032(H)
Gross/Net Weight(kg)200/180kg

Special features:

1. Make mix different products weighing at one discharge;

2. Adopt no-grade vibrating feeding system to make products flowing more fluently;

3. Program can be freely adjusted according to production condition;

4. Can be remote-controlled and maintained through internet;

5. Adopt high precision digital load cell;

6. Stable PLC system control;

7. Color touch screen with Multilanguage control panel;

8. Sanitation with 304﹟S/S construction

9. The parts contacted products can be easily mounted without tools;

10. IP65 construction.
