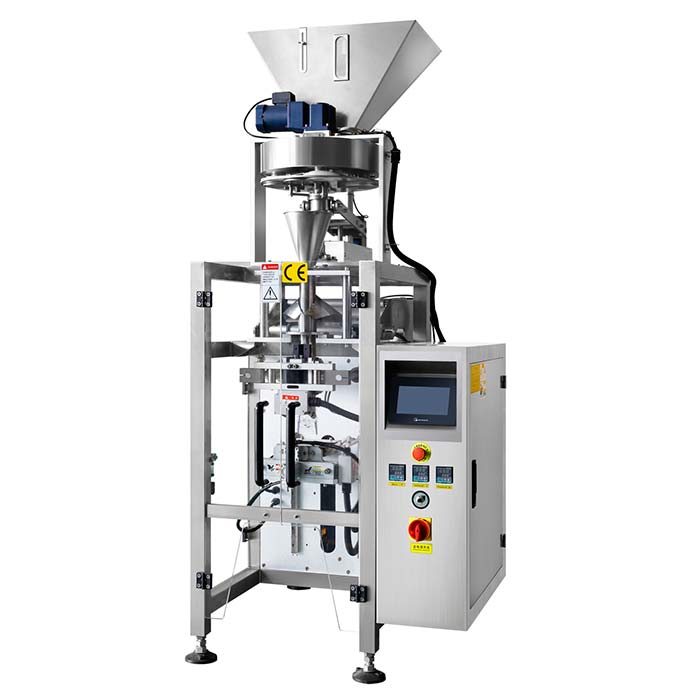

High-speed Packing Machine QUA-320VC

High speed Packing Machine


Suitable for many kinds of loose products, such as rice, popcorn, pea, sugar, grains,granule powder, seeds, spice and salt etc.

Technical Parameters:

Control systemPLC+English interface
Packing speed40-80 bags/min
Size of pillow bagLength:50-200mm; width 40-150mm
Size of 3 sides sealing bagLength:50-200mm; width 40-160mm
The max. roll film width320mm
Type of sealingPillow bag or 3-side sealing
Packing materialOPP/CPP,OPP/CE,PET/PE
Measuring range50-300ML
Power supply specification220V 50Hz 2Kw
Overall size1200(L)*700(W)*1520(H)mm
Dead weight of machine400KG

Technology Charateristic:

1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.

4. External film releasing mechanism: simpler and easier installation of packing film.

5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple.

6. Close down type mechanism, defending powder into inside of machine.
